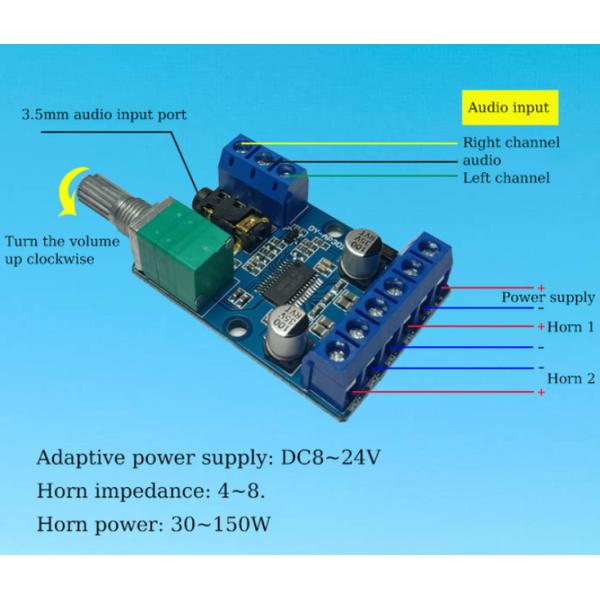

• Product Name:30W×2 Stereo Digital Power Amplifier Module
• Product model:DY-AP3015
• Working voltage:DC: 8~24V
• Working mode:Class D (PWM modulation)
• Number of channels:Stereo (two channels)
• Output power (@1KHz):18W*2 @12V 4Ω
• Output power (@1KHz):10W*2 @12V 8Ω 15W*2 @16V 8Ω 20W*2 @20V 8Ω 30W*2 @24V 8Ω (need to add heat sink)
• Adapted speaker (30W~150W):4 ohms (8-12V power supply) 8 ohms (8-24V power supply)
• Module Protection Mechanism
• Short circuit protection
• Self-recovery overheating protection

Notes on use:

• The recommended power supply voltage is DC 8~24V. If it exceeds 26V, the chip will burn out, and if it is lower than 8V, there will be noise.
• When connected to a 4Ω speaker, the power supply does not exceed 12V, and when connected to an 8Ω speaker, the power supply does not exceed 24V.
• The power supply current is recommended to be above 2A.
• working power of the module exceeds 20W*2, and a heat sink needs to be added
• Ensure that the input audio signal is within 0.5V~1.5V The speaker cable should not be too long, and it should be within 1 meter.
• Pay attention to static electricity protection. Before touching the power amplifier board, you need to release the static electricity on your hands to avoid static electricity from breaking down the power amplifier chip. Digital power amplifiers are more sensitive to static electricity.
• It is recommended to use speakers with a rated power of 30W and above to avoid heating and burning the speakers
