Be able to control temperature and humidity at the same time.

Be able to connect with humidifier and dehumidifier equipment at the same time.

Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.

Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change.Same as humidity Control.

Supporting Temp and Humidity Calibration

[Dual Display Window] Be able to display measured temperature/humidity and set temp/humidity at the same time

Specification:

Model: XK-W1099

Input voltage: AC110~220V± 10%, DC24V, DC12V

Measuring temperature range: 0°C~+100° C

Measuring humidity range: 00%RH~+100%RH

Accuracy: ±1°, 0.1%RH

Relay output contact capacity: 10A Direct Output

Shell material: PC + ABS fireproof

Sensor length: 1m

-------------

Set startup temperature( hunidity):
Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys
Set the stop temperature( hunidity):
Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys

temperature( hunidity) correction:

Press "up" and "down button at the same time.

How to reset the product:

Press "down 1" and "down 2" for 3 seconds.

Package includes:

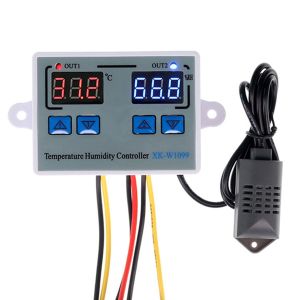

1 X Temperature Humidity Controller
