Ca-155 10-30v Led Backlight Driver Board Led inverter for Light Adjustment

Ask Lasest Price
Model Number :	CA-155
Brand Name :	creatall
Supply Ability :	100000 Piece/Pieces per Day
Price :
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

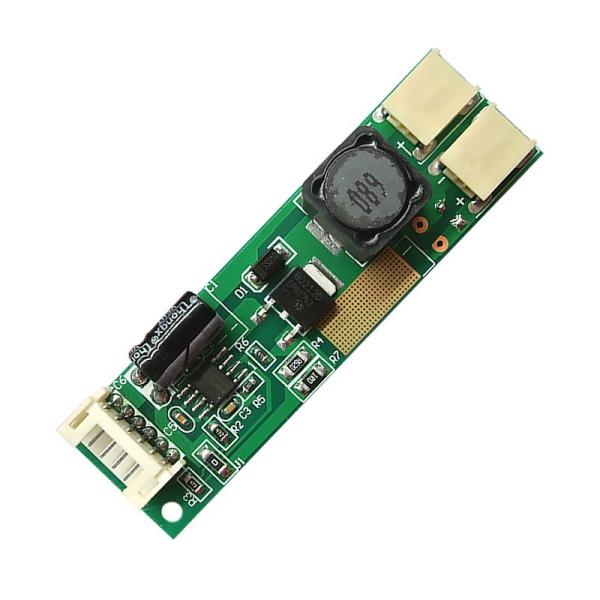

Ca-155 10-30v Led Backlight Driver Board Led inverter for Light Adjustment

CA-155 LED Constant Current Board Power Supply Driver Light Adjustment

Product Description:

Installation:
If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance), and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect with the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,In the original high-pressure front to take power.

VIN : voltage
ENA: on/off
DIM: ADJ adjust brightness
GND: connecting Ground

Features:

Input :10-30V
Output: 9.6V
Applicable to a group of three LED light strips
Product size: 70mm*20mm
Product Advantage: Dimmable, 125 with shielding inductor
